Pressure Dynamics supplies and supports high-performance hydraulic hose assemblies designed for safety, reliability, and durability in high-pressure systems. Our hydraulic hose offering includes 1 wire, 2 wire, and multi-spiral constructions to meet the full spectrum of hydraulic operating environments across the energy, resources, marine, defence, and industrial sectors.
Hydraulic Hoses
Each hose assembly is selected and built to meet or exceed relevant standards, with end connections, reinforcement layers, and cover materials chosen based on the pressure, fluid, temperature, and abrasion requirements. All hoses are assembled and tested under ISO certified procedures and can be supported with datasheets, testing, and traceability documentation.
Hydraulic 1 Wire Hose
Our 1 wire braided hydraulic hoses are ideal for medium-pressure systems across mobile, industrial, and general fluid power applications. These hoses are lightweight, flexible, and easy to route—making them ideal for compact or mobile plant environments.
Built to meet standards such as EN 853 1SN and SAE 100R1AT, our 1 wire hoses are available in a range of inner diameters and pressure ratings and can be supplied with matched fittings and ferrules to ensure system integrity and leak-free performance.
Services include
- Suitable for working pressures up to ~250 bar
- Optimised for flexibility and reduced bend radius
- Available with abrasion-resistant or FRAS covers
- Compatible with petroleum-based fluids, glycol, and emulsions
- Commonly used in mobile plant, construction, and material handling
- Supplied with test certification and assembly traceability

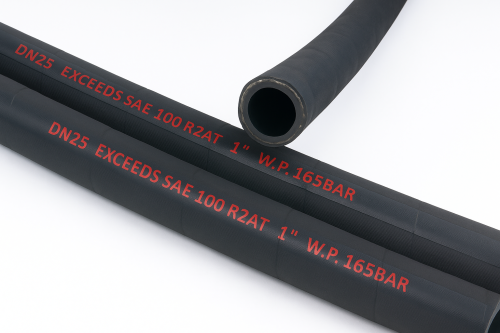

Hydraulic 2 Wire Hose
Our 2 wire braided hoses offer enhanced pressure performance and increased safety margins, making them suitable for demanding hydraulic systems across fixed and mobile equipment. These hoses meet or exceed EN 853 2SN, SAE 100R2AT, and related international specifications.
2 wire hoses are widely used in mining, agriculture, and offshore equipment where additional pressure resistance and abrasion protection are required. All assemblies are crimped, cleaned, and pressure-tested in accordance with client specifications
Services include
- Rated for working pressures up to ~400 bar
- Available in standard, high-flex, and FRAS variants
- Suitable for both suction and pressure lines
- Matched with carbon steel, stainless, or plated end fittings
- Options for MSHA, EN/DIN, and DNV-GL certified hose constructions
- Supplied with batch certification and compliance documentation

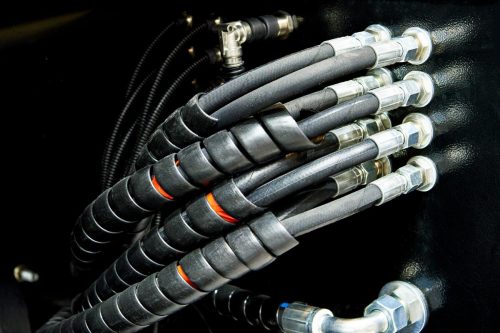

Hydraulic Multi-Spiral Hose
Our multi-spiral hydraulic hoses are engineered for ultra-high-pressure applications where safety, strength, and fatigue resistance are critical. These hoses are typically constructed with four or six spiral layers of high-tensile steel wire and meet global standards including EN 856 4SP/4SH and SAE 100R12/R13/R15.
Used in heavy-duty equipment, high-impulse systems, and hydraulic power units, multi-spiral hoses are available in custom lengths with a wide range of end fittings and protective covers, including high-abrasion, heat-resistant, and FRAS-rated options.
Services include
- Designed for pressures exceeding 420 bar
- High burst pressure and impulse cycle ratings
- Reinforced for mechanical stress and pulsation resistance
- Compatible with mineral oils, synthetic fluids, and fire-resistant media
- Suited to mining, offshore drilling, industrial, and defence systems
- Assembled under ISO 9001 with full testing and compliance records
Why Choose Pressure Dynamics
Pressure Dynamics integrates hydraulic hose supply with full-system expertise across engineered solutions, field service, and workshop repairs. Our assemblies are built to align with complex hydraulic systems, ensuring safety, compatibility, and long-term performance.
We offer flexible product sales, urgent spares, and short-term hose and equipment hire—supported by ISO-certified processes and OEM partnerships. Clients trust us for reliable, high-performance hose solutions across critical operations.
